      ELECTRICAL EQUIPMENT CONTROL & MONITORING SYSTEM (ECMS)

      System Overview

      ECMS (Electrical Equipment Control & Monitoring System) is a system aimed at improving the reliability of power facilities through accident prevention and rapid accident recovery by linking various electrical devices in the power plant/substation with protection relays and providing monitoring/control/measurement and integration/alert/trend/report functions as well as IED diagnosis information, communication status information/system fault storage and analysis functions.
      ECMS (Electrical Equipment Control & Monitoring System) software used is SIEMENS SICAM PAS and SICAM PQS.
      SICAM PAS is designed as a modular, open system that complies with all popular communication standards. It also supports operators in implementing project-specific tasks in the fields of substation automation and power automation.
      The human-machine interface (HMI) of SICAM SCC offers various options for implementing individual system management concepts through user-defined user interfaces and specific operator tasks.
      The consistent use of Windows technology, convenient user interface and sophisticated operating logic of system components ensure that new users can become familiar with SICAM PAS in a short time.
      Based on SICAM PQS, connection options of quality measuring devices and error recorders, protective devices with error record detection and device-independent archives, Siemens offers a comprehensive set of efficient tools. These tools support innovative solutions to a variety of tasks for detection and collection of PQ measurement data to determine the power quality of the network.
      Since the individual system components can be combined in several different ways, this concept meets almost all requirements for a state-of-the-art, safe and conveniently designed system.
      By using a fully digital IED (Intelligent Electronic Device), protection functions and failure analysis functions are strengthened to prevent accidents and quickly recover from accidents.

      EQUIPMENT & SOFTWARE


      • Example of a Distributed SICAM PAS System
        with Full Server and DIP

        ■ SICAM PAS Overview
             - SICAM PAS UI - Configuration
             - SICAM PAS UI - Operation
             - SICAM PAS UI - Operation Client
             - SICAM PAS Value Viewer
             - SoftPLC (Automation)
             - User Administration
             - Feature Enabler
             - SICAM SCC HMI
             - SICAM PQ Analyzer, Incident Explorer, Fault Event Viewer, and Event Viewer
             - Substation Control Functions


      • Sample Configuration of a SICAM PQS System
        with SICAM PQ Analyzer

        ■ SICAM PQS Overview
             - SICAM PQ Analyzer
             - SICAM PQ Collector
             - SICAM PQS UI - Configuration
             - SICAM PQS UI - Operation
             - SICAM PQS UI - Operation Client
             - SICAM PQS Value Viewer
             - User Administration
             - Feature Enabler

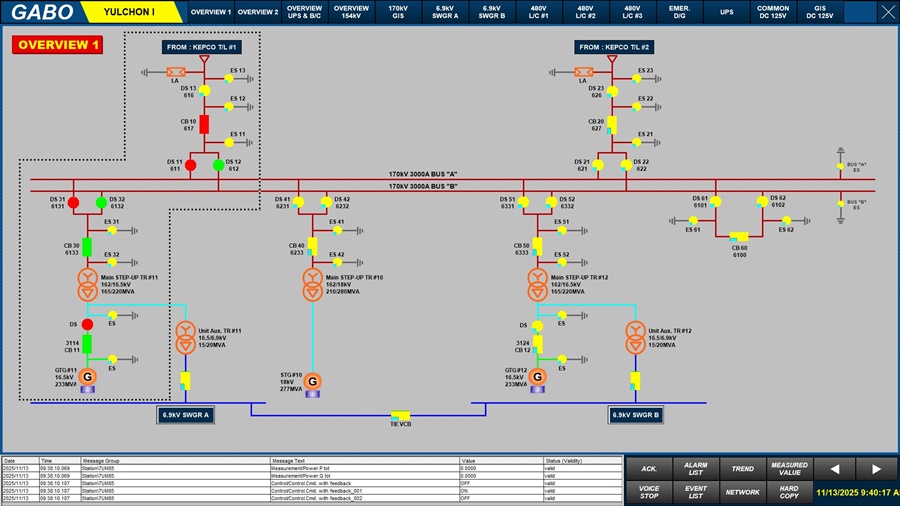

      Surveillance Function

      - Monitoring open/close status of CB, DS, ES, etc.
      - Protection relay and external alarm monitoring

      Control Function

      - Open/Close control of CB, DS, ES, etc.


      • The example below shows how to use enable to toggle a circuit breaker from OFF to ON. As soon as a circuit breaker (information object) is selected, the relevant switching dialog opens.

      • After clicking the ON button, the switching device will start blinking in the set state and the following dialog box will open for activation.


      - Click the Acknowledge button to activate the switching operation. The setpoint will stop blinking and the circuit breaker icon will now display the ON status.

      Measurement and Integration

      • - Basic electricity quantity measurement (A, kV, F, PF, kW, etc.)
        - Active and reactive power (kWh, kVarh)
        - SICAM Valpro is an optional system component that uses measurements and measured values from the SICAMSCC
           archiving system (SIMATIC WinCC Tag Management). SICAM Valpro displays stored values graphically or
           in tabular form.
        - The following values are evaluated:
             o original value
             o Maximum, minimum, and average values over different time intervals, such as 15-minute or hourly values.
             o power factor
             o Sum/difference value of measured values at different time intervals

      Alarm Function

      • - Protection relay operation and external input alarm
        - Alarm by Textm, Sound, Symbol
        - Convenient search function by voltage level, feeder, date, and time
             o value
             o 위치
             o location
             o situation
             o additional causes
             o ID number
             o Additional information
             o time status

      Trend Function

      • - Real-time trend display of electricity quantity
        - Scale and time adjustable
        - Past data can be viewed and searched

      Report Function

      • - Periodic report of specified value
        - Report output in days, months, and years
